Product Name: Z1 Series Locking Assembly-Keyless Locking Device-Shaft Clamping Elements

Product Details

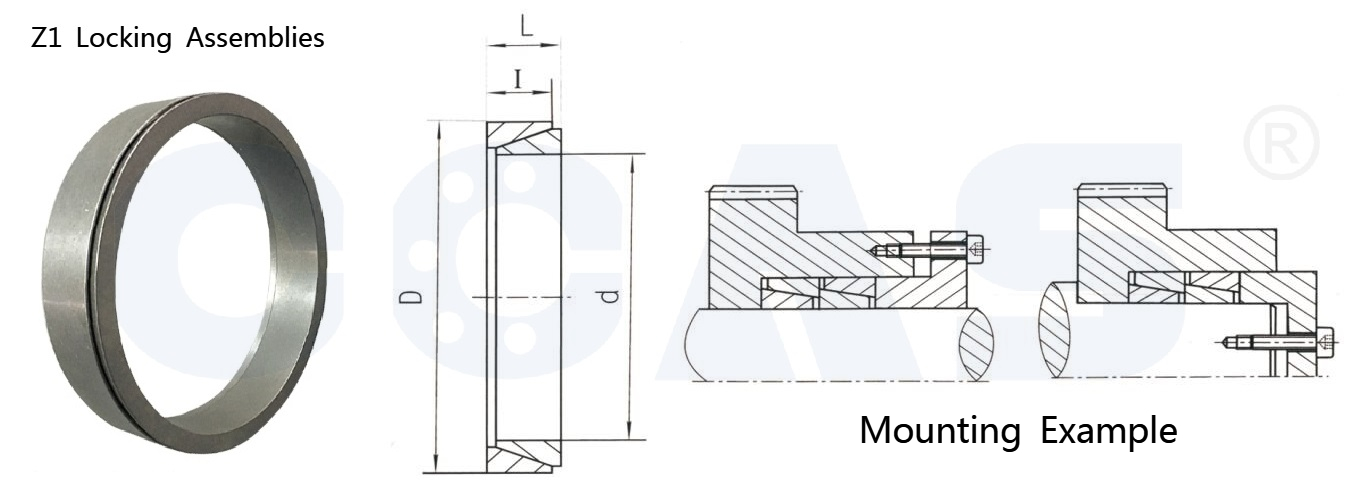

Drawing and Technical Data Sheet of Z1 series Locking Assembly

Z1 Series Locking Assemblies - Shaft Clamping Elements
Sizes	Dimension				Rated Load		Weight
Sizes	Dimension				Axial Force	Torque	Weight
d×D	d	D	L	I	Ft(KN)	Mt(KN.m)	(Kg)
6×9	6	9	4.5	3.7	0.83	0.012	0.002
7×10	7	10	4.5	3.7	0.85	0.013	0.002
8×11	8	11	4.5	3.7	0.86	0.013	0.002
9×12	9	12	4.5	3.7	0.88	0.014	0.002
10×13	10	13	4.5	3.7	0.9	0 014	0.002
11×14	11	14	4.5	3.7	0.94	0.015	0.002
12×15	12	15	4.5	3.7	1	0 017	0.002
13×16	13	16	6.3	5.3	1.1	0.018	0.002
14×18	14	18	6.3	5.3	2	0.029	0.005
15×19	15	19	6.3	5.3	2.3	0.03	0.005
16×20	16	20	6.3	5.3	2.6	0.033	0.006
17×21	17	21	6.3	5.3	2.9	0.035	0.006
18×22	18	22	6.3	5.3	3.3	0.037	0.006
19×24	19	24	6.3	5.3	3.6	0.039	0.08
20×25	20	25	6.3	5.3	4	0.004	0.01
22×26	22	26	6.3	5.3	4.5	0.005	0.01
25×30	25	30	6.3	5.3	5	0.06	0.01
28×32	28	32	6.3	5.3	5.6	0.08	0.01
30×35	30	35	6.3	5.3	6	0.09	0.01
32×36	32	36	6.3	5.3	6.4	0.1	0.01
35×40	35	40	7	6	8.2	0.15	0.016
36×42	36	42	7	6	9.37	0.166	0.019
38×44	38	44	7	6	9.55	0.186	0.02
40×45	40	45	8	6.6	9.9	0.2	0.02
42×48	42	45	8	6.6	11.22	0.26	0.026
45×52	45	52	10	8.6	14.6	0.33	0.04
48×55	48	55	10	8.6	15.6	0.36	0.046
50×57	50	57	10	8.6	16.2	0.4	0.05
55×62	55	62	10	10.4	17.8	0.49	0.05
56×64	56	64	12	10.4	19.4	0.58	0.06
60×68	60	68	12	10.4	23.5	0.7	0.07
63×71	63	71	12	10.4	24.4	0.75	0.076
65×73	65	73	12	12.2	25.6	0.83	0.08
70×79	70	79	14	12.2	32	1.12	0.11
71×80	71	80	14	12.2	23.4	1.2	0.11
75×84	75	84	14	12.2	34.4	1.29	0.12
80×91	80	91	17	15	45	1.81	0.12
85×96	85	96	17	15	48	2.04	0.2
90×101	90	101	17	15	51	2.29	0.22
95×106	95	106	17	15	54	2.55	0.23
100×114	100	114	21	18.7	70	3.5	0.38
105×119	105	119	21	18.7	73.2	3.82	0.4
110×124	110	124	21	18.7	77	4.25	0.41
120×134	120	134	21	18.7	84	5.05	0.45
125×139	125	139	21	18.7	92	5.75	0.62
130×148	130	148	28	25.3	124	8.05	0.85
140×158	140	158	28	25.3	134	9.35	0.91
150×168	150	168	28	25.3	143	10.7	0.97
160×178	160	178	28	25.3	152.5	12.2	1.02
170×191	170	191	33	30	192	16.3	1.5
180×201	180	201	33	30	204	18.3	1.58
190×211	190	211	33	30	214	20.4	1.68
200×224	200	224	38	34.8	262	26.2	2.32
210×234	210	234	38	34.8	275	28.9	2.45
220×244	220	244	38	34.8	288	37.7	2.49
240×267	240	267	42	39.5	358	43	3.52
250×280	250	280	48	44	415	52	4.68
260×290	260	290	48	44	435	56.5	4.82
280×313	280	313	53	49	520	72.5	6.27
300×333	300	333	53	49	555	83	6.47
320×360	320	360	65	59	710	114	10.9
340×380	340	380	65	59	755	128.5	11.5
360×400	360	400	65	59	800	144	12.2
380×420	380	420	65	59	845	160.5	12.8
400×440	400	440	65	59	890	178	13.5
420×460	420	460	65	59	935	196	14.1
450×490	450	490	65	59	998	224.5	15.2
480×520	480	520	65	59	1070	256	16
500×540	500	540	65	59	1110	278	16.5
