Product Name: Z15 Series Locking Assemblies-Keyless Shaft Power Lock-Shaft Clamping Elements

Product Details

Product Name: Locking Assemblies, Keyless Locking Device, Shaft Clamping Elements, Shaft Power Lock, Cone Clamping Elements

Series: Z15

Material: #45 Carbon Steel

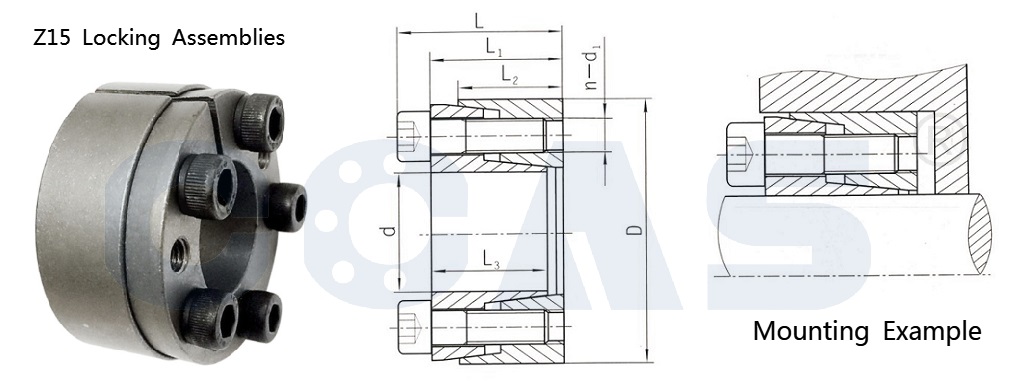

Drawing and Technical Data Sheet of Z15 series Shaft Locking Assemblies

Z15 Series Locking Assemblies - Shaft Clamping Elements - Shaft Power Lock
Dimensions						Rated Load		Screw			Pressure on shaft	Pressure on hub	Weight
d	D	L3	L2	L1	L	Torque	Axial Force	d1	n	MA	pt	pt	kg
d	D	L3	L2	L1	L	kN	kN．m	d1	n	N．m	N/mm2	N/mm2
20	47	20	17	23	29	0.34	34	M6	5	17	242	121	0.25
22	47	20	17	23	29	0.38	34	M6	5	17	220	121	0.24
24	50	20	17	23	29	0.41	34	M6	5	17	202	114	0.27
25	50	20	17	23	29	0.43	34	M6	5	17	194	114	0.29
28	55	20	17	23	29	0.6	42	M6	6	17	207	124	0.31
30	55	20	17	23	29	0.64	42	M6	6	17	194	124	0.3
35	60	20	17	23	29	0.9	51	M6	7	17	194	133	0.33
40	65	20	17	23	29	1.03	51	M6	8	17	194	140	0.37
45	75	24	20	28	36	1.8	80	M8	6	41	200	144	0.62
50	80	24	20	28	36	2.3	80	M8	7	41	210	156	0.67
55	85	24	20	28	36	2.9	107	M8	8	41	218	169	0.72
60	90	24	20	28	36	3.2	107	M8	8	41	200	160	0.77
65	95	24	20	28	36	3.8	120	M8	9	41	208	171	0.82
70	110	29	24	34	44	6	170	M10	8	83	225	173	1.5
75	115	29	24	34	44	6.4	170	M10	8	83	210	166	1.59
80	120	29	24	34	44	6.8	170	M10	8	83	197	159	1.67
85	125	29	24	34	44	8.1	190	M10	9	83	209	171	1.76
90	130	29	24	34	44	9.6	210	M10	10	83	219	183	1.84
95	135	29	24	34	44	10.1	210	M10	10	83	207	176	1.9
100	145	33	28	38	50	11	220	M12	8	145	190	154	2.58
110	155	33	28	38	50	14	250	M12	9	145	194	162	2.79
120	165	33	28	38	50	17	280	M12	10	145	198	170	3
130	180	38	33	43	55	23	350	M12	12	145	190	158	4.1
140	190	38	33	43	55	24	345	M12	12	145	177	150	4.37
150	200	38	33	43	55	30	400	M12	14	145	192	166	4.63
160	210	38	33	43	55	35	440	M12	15	145	193	170	4.9
170	225	43	38	49	63	41	480	M14	12	230	176	151	6.56
180	235	43	38	49	63	51	560	M14	14	230	194	168	6.9
190	250	51	46	57	71	61	640	M14	16	230	177	150	9.27
200	260	51	46	57	71	72	700	M14	18	230	190	162	9.7
220	285	55	50	61	77	99	900	M16	16	355	198	168	12.3
240	305	55	50	61	77	108	900	M16	16	355	181	157	13.3
260	325	55	50	61	77	130	1000	M16	18	355	188	165	14.3
280	355	65	60	73	91	170	1200	M18	18	485	178	152	21.4
300	375	65	60	73	91	200	1350	M18	20	485	184	160	22.7
320	405	77	72	85	105	275	1700	M20	20	690	189	160	32.2
340	425	77	72	85	105	290	1700	M20	20	690	178	152	34
360	455	89	84	99	121	385	2000	M22	20	930	181	152	47.2
380	475	89	84	99	121	430	2200	M22	21	930	180	153	49.5
400	495	89	84	99	121	450	2200	M22	21	930	171	147	51.8
420	515	89	84	99	121	545	2500	M22	24	930	186	161	54.2
440	545	101	96	113	137	660	3000	M24	24	1200	181	154	72
460	565	101	96	113	137	690	3000	M24	24	1200	173	148	74.9
480	585	101	96	113	137	720	3000	M24	24	1200	166	143	77
500	605	101	96	113	137	880	3400	M24	28	1200	186	162	80.8
520	630	101	96	113	137	915	3400	M24	28	1200	179	155	88.1
540	650	101	96	113	137	950	3400	M24	28	1200	172	150	91.1
560	670	101	96	113	137	1060	3700	M24	30	1200	178	156	94.2
580	690	101	96	113	137	1100	3700	M24	30	1200	172	152	97.3
600	710	101	96	113	137	1130	3700	M24	30	1200	166	148	100.3
