Product Name: Z22 Series Locking Assemblies-Keyless Shaft Power Lock-Shaft Clamping Elements

Product Details

Product Name: Locking Assemblies, Keyless Locking Device, Shaft Clamping Elements, Shaft Power Lock, Cone Clamping Elements

Series: Z22

Material: #45 Carbon Steel

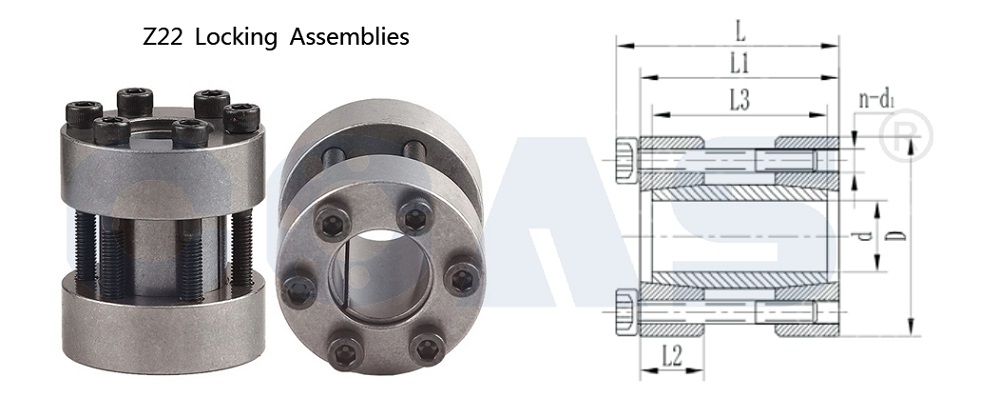

Drawing and Technical Data Sheet of Z22 series Shaft Locking Assemblies

Z22 Series Locking Assemblies - Shaft Clamping Elements - Shaft Power Lock
Dimension						Axial Force	Torque	Screw
Dimension						Axial Force	Torque	QTY	Specs	Tightening Torque
d	D	L	L1	L2	L3	Ft	Mt			Ts
mm	mm	mm	mm	mm	mm	KN	Nm			Nm
17	50	56	50	16	44	16.8	142	4	M6X45	17
18	50	56	50	16	44	16.8	151	4	M6X45	17
19	50	56	50	16	44	16.8	159	4	M6X45	17
20	50	56	50	16	44	16.8	268	4	M6X45	17
24	55	66	60	18.5	54	25.2	302	6	M6X55	17
25	55	66	60	18.5	54	25.2	315	6	M6X55	17
28	60	66	60	18.5	54	25.2	352	6	M6X55	17
30	60	66	60	18.5	54	25.2	378	6	M6X55	17
32	63	66	60	18.5	54	25.2	403	6	M6X55	17
35	75	83	75	22	67	31.2	546	4	M8X70	42
38	75	83	75	22	67	31.2	592	4	M8X70	42
40	75	83	75	22	67	31.2	624	4	M8X70	42
42	78	83	75	22	67	31.2	982	4	M8X70	42
45	85	93	85	24.5	76	46.8	1053	6	M8X80	42
48	90	93	85	24.5	76	46.8	1123	6	M8X80	42
50	90	93	85	24.5	76	46.8	1170	6	M8X80	42
55	94	93	85	24.5	76	62.4	1710	8	M8X80	42
60	100	93	85	24.5	76	62.4	1870	8	M8X80	42
65	105	93	85	24.5	76	62.4	2020	8	M8X80	42
70	115	110	100	29	90	98.4	3440	8	M10X95	84
