Product Name: HMVC Series Hydraulic Nuts
Product Details

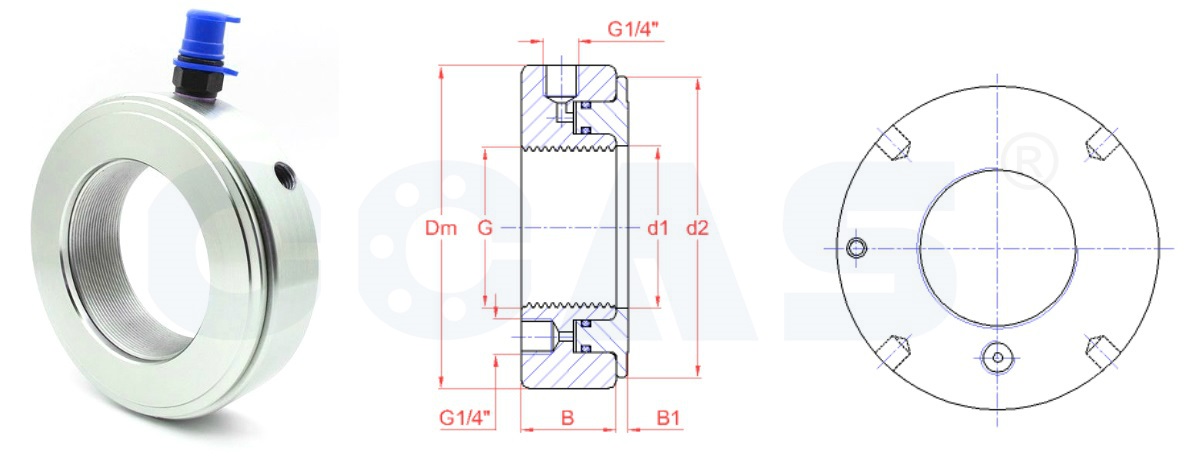

Drawing and Technical Data Sheet of HMVC Series Hydraulic Nuts
| Hydraulic Nuts No. | G | d1 | d2 | Dm | B | B1 | Max. Axial Displacement | Injection Hole Thread |
| mm | mm | mm | mm | mm | mm | mm | BSP | |
| HMVC 10E | 1.967"x18F | 50.5 | 104 | 114 | 38 | 4 | 5 | G1/4" |
| HMVC 11E | 2.157"x18F | 55.5 | 109 | 120 | 38 | 4 | 5 | G1/4" |
| HMVC 12E | 2.360"x18F | 60.5 | 115 | 125 | 38 | 5 | 5 | G1/4" |
| HMVC 13E | 2.548"x18F | 65.5 | 121 | 130 | 38 | 5 | 5 | G1/4" |
| HMVC 14E | 2.751"x18F | 70.5 | 127 | 135 | 38 | 5 | 5 | G1/4" |
| HMVC 15E | 2.933"x12F | 75.5 | 132 | 140 | 38 | 5 | 5 | G1/4" |
| HMVC 16E | 3.137"x12F | 80.5 | 137 | 146 | 38 | 5 | 5 | G1/4" |
| HMVC 17E | 3.340"x12F | 85.5 | 142 | 150 | 38 | 5 | 5 | G1/4" |
| HMVC 18E | 3.527"x12F | 90.5 | 147 | 156 | 38 | 5 | 5 | G1/4" |
| HMVC 19E | 3.730"x12F | 95.5 | 153 | 162 | 38 | 5 | 5 | G1/4" |
| HMVC 20E | 3.918"x12F | 100.5 | 158 | 166 | 38 | 6 | 5 | G1/4" |
| HMVC 21E | 4.122"x12F | 105.5 | 163 | 172 | 38 | 6 | 5 | G1/4" |
| HMVC 22E | 4.325"x12F | 110.5 | 169 | 178 | 38 | 6 | 5 | G1/4" |
| HMVC 24E | 4.716"x12F | 120.5 | 179 | 188 | 38 | 6 | 5 | G1/4" |
| HMVC 26E | 5.106"x12F | 130.5 | 190 | 198 | 38 | 6 | 5 | G1/4" |
| HMVC 28E | 5.497"x12F | 140.5 | 200 | 208 | 38 | 7 | 5 | G1/4" |
| HMVC 30E | 5.888"x12F | 150.5 | 211 | 220 | 39 | 7 | 5 | G1/4" |
| HMVC 32E | 6.284"x8F | 160.5 | 224 | 232 | 40 | 7 | 6 | G1/4" |
| HMVC 34E | 6.659"x8F | 170.5 | 235 | 244 | 41 | 7 | 6 | G1/4" |
| HMVC 36E | 7.066"x8F | 180.5 | 247 | 256 | 41 | 7 | 6 | G1/4" |
| HMVC 38E | 7.472"x8F | 191 | 259 | 270 | 42 | 8 | 7 | G1/4" |
| HMVC 40E | 7.847"x8F | 201 | 271 | 282 | 43 | 8 | 8 | G1/4" |
| HMVC 44E | 8.628"x8F | 222 | 293 | 306 | 43 | 8 | 9 | G1/4" |
| HMVC 48E | 9.442"x6F | 242 | 316 | 330 | 46 | 9 | 10 | G1/4" |
| HMVC 52E | 10.192"x6F | 262 | 341 | 356 | 47 | 9 | 11 | G1/4" |
| HMVC 56E | 11.004"x6F | 282 | 363 | 380 | 49 | 9 | 12 | G1/4" |
| HMVC 60E | 11.785"x6F | 302 | 386 | 404 | 50 | 10 | 14 | G1/4" |
| HMVC 64E | 12.562"x6F | 322 | 409 | 428 | 53 | 10 | 14 | G1/4" |
| HMVC 68E | 13.339"x5F | 342 | 430 | 450 | 54 | 10 | 14 | G1/4" |
| HMVC 72E | 14.170"x5F | 362 | 455 | 472 | 56 | 10 | 15 | G1/4" |
| HMVC 76E | 14.957"x5F | 382 | 476 | 498 | 58 | 11 | 16 | G1/4" |
| HMVC 80E | 15.745"x5F | 402 | 499 | 522 | 60 | 11 | 17 | G1/4" |
| HMVC 84E | 16.532"x5F | 422 | 522 | 546 | 61 | 11 | 17 | G1/4" |
| HMVC 88E | 17.319"x5F | 442 | 543 | 566 | 62 | 12 | 17 | G1/4" |
| HMVC 92E | 18.107"x5F | 462 | 565 | 590 | 64 | 12 | 17 | G1/4" |
| HMVC 96E | 18.894"x5F | 482 | 587 | 612 | 65 | 12 | 19 | G1/4" |
| HMVC 100E | 19.682"x5F | 502 | 609 | 636 | 67 | 12 | 19 | G1/4" |
| HMVC 106E | 20.867"x4F | 532 | 645 | 670 | 69 | 13 | 21 | G1/4" |
| HMVC 112E | 22.048"x4F | 562 | 678 | 704 | 71 | 13 | 22 | G1/4" |
| HMVC 120E | 23.623"x4F | 602 | 721 | 748 | 73 | 13 | 23 | G1/4" |
| HMVC 126E | 24.804"x4F | 632 | 754 | 782 | 74 | 14 | 23 | G1/4" |
| HMVC 134E | 26.379"x4F | 672 | 796 | 826 | 75 | 14 | 24 | G1/4" |
| HMVC 142E | 27.961"x3F | 712 | 840 | 870 | 78 | 15 | 25 | G1/4" |
| HMVC 150E | 29.536"x3F | 752 | 883 | 912 | 79 | 15 | 25 | G1/4" |
| HMVC 160E | 31.504"x3F | 802 | 936 | 965 | 80 | 16 | 25 | G1/4" |
| HMVC 170E | 33.473"x3F | 852 | 990 | 1020 | 83 | 16 | 26 | G1/4" |
| HMVC 180E | 35.441"x3F | 902 | 1043 | 1075 | 86 | 17 | 30 | G1/4" |
| HMVC 190E | 37.410"x3F | 952 | 1097 | 1126 | 86 | 17 | 30 | G1/4" |
