Product Name: KM (AN) Lock Nuts
Product Details

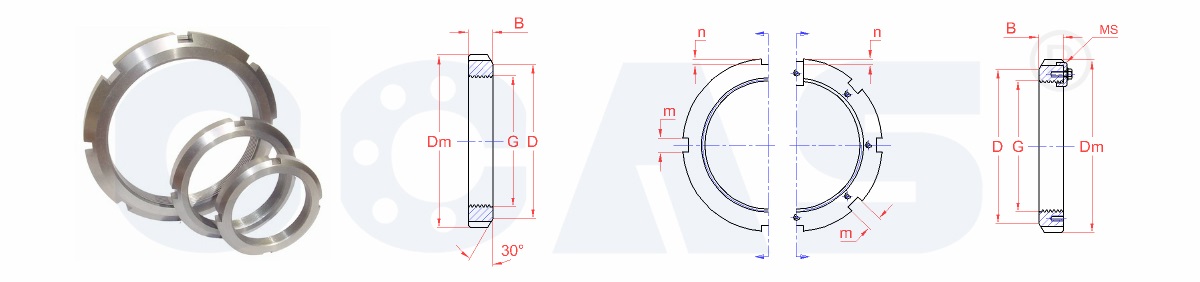

Drawing and Technical Data Sheet of KM Locking Nuts
| Lock Nuts No. | G | Dm | B | D | m | n |
| mm | mm | mm | mm | mm | ||
| KM 0 | M 10x0.75 | 18 | 4 | 13.5 | 3 | 2 |
| KM 1 | M 12x1 | 22 | 4 | 17 | 3 | 2 |
| KM 2 | M 15x1 | 25 | 5 | 21 | 4 | 2 |
| KM 3 | M 17x1 | 28 | 5 | 24 | 4 | 2 |
| KM 4 | M 20x1 | 32 | 6 | 26 | 4 | 2 |
| KM 5 | M 25x1.5 | 38 | 7 | 32 | 5 | 2 |
| KM 6 | M 30x1.5 | 45 | 7 | 38 | 5 | 2 |
| KM 7 | M 35x1.5 | 52 | 8 | 44 | 5 | 2 |
| KM 8 | M 40x1.5 | 58 | 9 | 50 | 6 | 2.5 |
| KM 9 | M 45x1.5 | 65 | 10 | 56 | 6 | 2.5 |
| KM 10 | M 50x1.5 | 70 | 11 | 61 | 6 | 2.5 |
| KM 11 | M 55x2 | 75 | 11 | 67 | 7 | 3 |
| KM 11x1.5 | M 55x1.5 | 75 | 11 | 67 | 7 | 3 |
| KM 12 | M 60x2 | 80 | 11 | 73 | 7 | 3 |
| KM 12x1.5 | M 60x1.5 | 80 | 11 | 73 | 7 | 3 |
| KM 13 | M 65x2 | 85 | 12 | 79 | 7 | 3 |
| KM 13x1.5 | M 65x1.5 | 85 | 12 | 79 | 7 | 3 |
| KM 14 | M 70x2 | 92 | 12 | 85 | 8 | 3.5 |
| KM 15 | M 75x2 | 98 | 13 | 90 | 8 | 3.5 |
| KM 16 | M 80x2 | 105 | 15 | 95 | 8 | 3.5 |
| KM 17 | M 85x2 | 110 | 16 | 102 | 8 | 3.5 |
| KM 18 | M 90x2 | 120 | 16 | 108 | 10 | 4 |
| KM 19 | M 95x2 | 125 | 17 | 113 | 10 | 4 |
| KM 20 | M 100x2 | 130 | 18 | 120 | 10 | 4 |
| KM 21 | M 105x2 | 140 | 18 | 126 | 12 | 5 |
| KM 22 | M 110x2 | 145 | 19 | 133 | 12 | 5 |
| KM 23 | M 115x2 | 150 | 19 | 137 | 12 | 5 |
| KM 24 | M 120x2 | 155 | 20 | 138 | 12 | 5 |
| KM 25 | M 125x2 | 160 | 21 | 148 | 12 | 5 |
| KM 26 | M 130x2 | 165 | 21 | 149 | 12 | 5 |
| KM 27 | M 135x2 | 175 | 22 | 160 | 14 | 6 |
| KM 28 | M 140x2 | 180 | 22 | 160 | 14 | 6 |
| KM 29 | M 145x2 | 190 | 24 | 171 | 14 | 6 |
| KM 30 | M 150x2 | 195 | 24 | 171 | 14 | 6 |
| KM 31 | M 155x3 | 200 | 25 | 182 | 16 | 7 |
| KM 32 | M 160x3 | 210 | 25 | 182 | 16 | 7 |
| KM 33 | M 165x3 | 210 | 26 | 193 | 16 | 7 |
| KM 34 | M 170x3 | 220 | 26 | 193 | 16 | 7 |
| KM 36 | M 180x3 | 230 | 27 | 203 | 18 | 8 |
| KM 38 | M 190x3 | 240 | 28 | 214 | 18 | 8 |
| KM 40 | M 200x3 | 250 | 29 | 226 | 18 | 8 |
