Product Name: AOH 241 (AOHX 241) Series Hydraulic Withdrawal Sleeves
Product Details

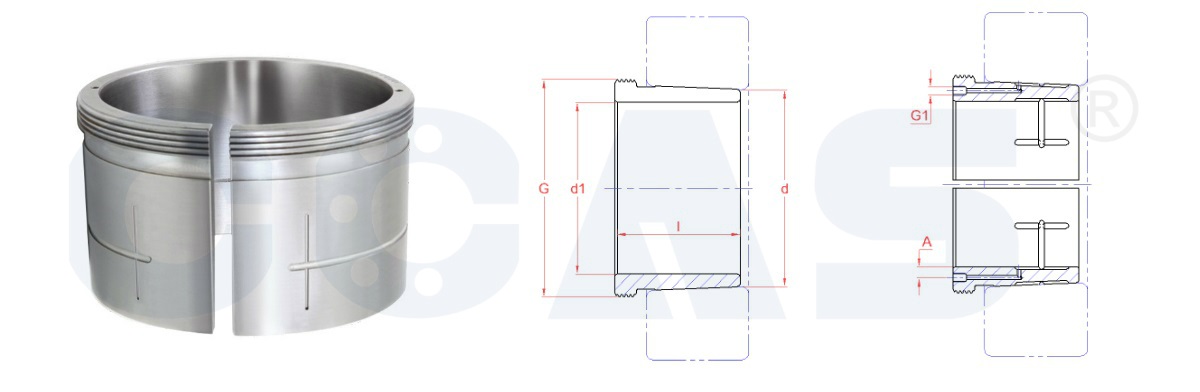

Technical Data Sheet of AOH 241 (AOHX 241) Series Hydraulic Withdrawal Sleeves
| Withdrawal Sleeves No. | d1 | d | l | G | G1 | Bearings |
| mm | mm | mm | ||||
| AOH 24144 | 200 | 220 | 170 | Tr 230x4 | G1/8"x28FPP | 24144K30 |
| AOH 24148 | 220 | 240 | 180 | Tr 260x4 | G1/8"x28FPP | 24148K30 |
| AOH 24152 | 240 | 260 | 202 | Tr 280x4 | G1/8"x28FPP | 24152K30 |
| AOH 24156 | 260 | 280 | 202 | Tr 300x4 | G1/8"x28FPP | 24156K30 |
| AOH 24160 | 280 | 300 | 224 | Tr 320x5 | G1/8"x28FPP | 24160K30, C 4160K30 |
| AOH 24164 | 300 | 320 | 242 | Tr 340x5 | G1/8"x28FPP | 24164K30 |
| AOH 24168 | 320 | 340 | 269 | Tr 360x5 | G1/8"x28FPP | 24168K30 |
| AOH 24172 | 340 | 360 | 269 | Tr 380x5 | G1/8"x28FPP | 24172K30 |
| AOH 24176 | 360 | 380 | 271 | Tr 400x5 | G1/8"x28FPP | 24176K30 |
| AOH 24180 | 380 | 400 | 278 | Tr 420x5 | G1/8"x28FPP | 24180K30 |
| AOH 24184 | 400 | 420 | 310 | Tr 440x5 | G1/8"x28FPP | 24184K30 |
| AOH 24188 | 420 | 440 | 310 | Tr 460x5 | G1/8"x28FPP | 24188K30, C 4188K30 |
| AOH 24192 | 440 | 460 | 332 | Tr 480x5 | G1/8"x28FPP | 24192K30, C 4192K30 |
| AOH 24196 | 460 | 480 | 343 | Tr 500x5 | G1/8"x28FPP | 24196K30 |
| AOH 241/500 | 480 | 500 | 362 | Tr 530x6 | G1/8"x28FPP | 241/500K30, C 41/500K30 |
| AOH 241/530 | 500 | 530 | 375 | Tr 550x6 | G1/4"x19FPP | 241/530K30 |
| AOH 241/560 | 530 | 560 | 400 | Tr 580x6 | G1/4"x19FPP | 241/560K30 |
| AOH 241/600 | 560 | 600 | 425 | Tr 625x6 | G1/4"x19FPP | 241/600K30 |
| AOHX 241/600 | 570 | 600 | 413 | Tr 630x6 | G1/4"x19FPP | C 41/600K30 |
| AOH 241/630 | 600 | 630 | 450 | Tr 655x6 | G1/4"x19FPP | 241/630K30 |
| AOH 241/670 | 630 | 670 | 467 | Tr 695x6 | G1/4"x19FPP | 241/670K30 |
| AOH 241/710 | 670 | 710 | 493 | Tr 740x7 | G1/4"x19FPP | 241/710K30 |
| AOH 241/750 | 710 | 750 | 520 | Tr 780x7 | G1/4"x19FPP | 241/750K30 |
| AOH 241/800 | 750 | 800 | 525 | Tr 830x7 | G1/4"x19FPP | 241/800K30 |
| AOH 241/850 | 800 | 850 | 560 | Tr 880x7 | G1/4"x19FPP | 241/850K30 |
| AOH 241/900 | 850 | 900 | 575 | Tr 930x8 | G1/4"x19FPP | 241/900K30 |
| AOH 241/950 | 900 | 950 | 605 | Tr 980x8 | G1/4"x19FPP | 241/950K30 |
| AOH 241/1000 | 950 | 1000 | 645 | Tr 1035x8 | G1/4"x19FPP | 241/1000K30 |
| AOH 241/1060 | 1000 | 1060 | 665 | Tr 1095x8 | G1/4"x19FPP | 241/1060K30 |
