Product Name: AH 23 (AHX 23) Series Withdrawal Sleeves
Product Details

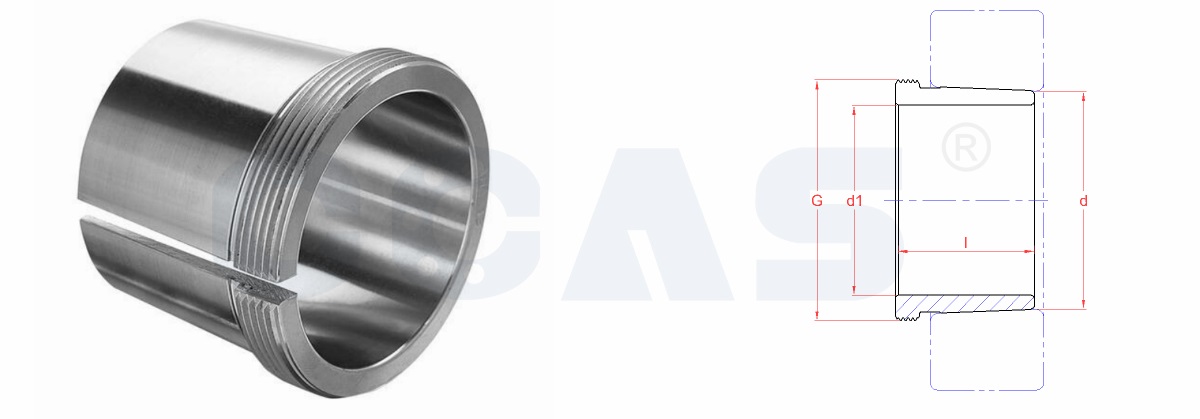

Drawing and Technical Data Sheet of AH 23 (AHX 23) Series Withdrawal Sleeves
| Withdrawal Sleeves No. | d1 | d | l | G | Bearings |
| mm | mm | mm | |||
| AH 2308 | 35 | 40 | 40 | M 45x1.5 | 2308K, 22308K |
| AH 2309 | 40 | 45 | 44 | M 50x1.5 | 2309K, 22309K |
| AHX 2310 | 45 | 50 | 50 | M 55x2 | 2310K, 22310K |
| AHX 2311 | 50 | 55 | 54 | M 60x2 | 2311K, 22311K |
| AHX 2312 | 55 | 60 | 58 | M 65x2 | 2312K, 22312K |
| AH 2313 | 60 | 65 | 61 | M 75x2 | 2313K, 22313K |
| AHX 2314 | 65 | 70 | 64 | M 80x2 | 2314K, 22314K |
| AHX 2315 | 70 | 75 | 68 | M 85x2 | 2315K, 22315K |
| AHX 2316 | 75 | 80 | 71 | M 90x2 | 2316K, 22316K, C 2316K |
| AHX 2317 | 80 | 85 | 74 | M 95x2 | 2317K, 22317K, C 2317K |
| AHX 2318 | 85 | 90 | 79 | M 100x2 | 2318K, 22318K, C 2318K |
| AHX 2319 | 90 | 95 | 85 | M 105x2 | 2319K, 22319K, C 2319K |
| AHX 2320 | 95 | 100 | 90 | M 110x2 | 2320K, 22320K, C 2320K |
| AHX 2322 | 105 | 110 | 98 | M 125x2 | 22322K |
| AHX 2324 | 115 | 120 | 105 | M 135x2 | 22324K |
| AHX 2326 | 125 | 130 | 115 | M 145x2 | 22326K |
| AHX 2328 | 135 | 140 | 125 | M 155x3 | 22328K |
| AHX 2330 | 145 | 150 | 135 | M 165x3 | 22330K |
| AH 2332 | 150 | 160 | 140 | M 180x3 | 22332K |
| AH 2334 | 160 | 170 | 146 | M 190x3 | 22334K |
| AH 2336 | 170 | 180 | 154 | M 200x3 | 22336K |
| AH 2338 | 180 | 190 | 160 | Tr 210x4 | 22338K |
| AH 2340 | 190 | 200 | 170 | Tr 220x4 | 22340K |
| AH 2344 | 200 | 220 | 181 | Tr 240x4 | 22344K, 23244K |
| AH 2348 | 220 | 240 | 189 | Tr 260x4 | 22348K, 23248K |
| AH 2352 | 240 | 260 | 205 | Tr 290x4 | 22352K, 23252K |
| AH 2356 | 260 | 280 | 212 | Tr 310x5 | 22356K, 23256K |
