Product Name: OHE 31 Series Hydraulic Adapter Sleeves
Product Details

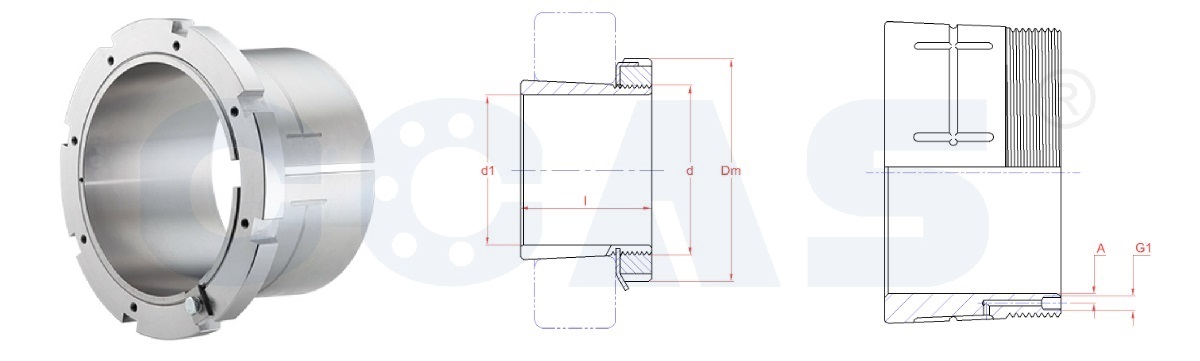

Drawing and Technical Parameters of OHE 31 Series Hydraulic Adapter Sleeves
| Adapter Sleeves No. | d1 | d | G | l | Dm | G1 | Lock Nuts + Locking Device | Bearings |
| mm | mm | mm | mm | |||||
| OHE 3132H | 5 1/2" | 160 | M 160x3 | 119 | 210 | M6x1 | KM 32 + MB 32 | 20332K, 22232K, 23132K |
| OHE 3132HL | 5 1/2" | 160 | M 160x3 | 119 | 190 | M6x1 | KML 32 + MBL 32 | 20332K, 22232K, 23132K |
| OHE 3134H | 6" | 170 | M 170x3 | 122 | 220 | M4x0.7 | KM 34 + MB 34 | 20334K, 22234K, 23134K |
| OHE 3134HL | 6" | 170 | M 170x3 | 122 | 200 | M4x0.7 | KML 34 + MBL 34 | C 2234K, C 3134K |
| OHE 3136H | 6 1/2" | 180 | M 180x3 | 131 | 230 | M4x0.7 | KM 36 + MB 36 | 22236K, 23136K |
| OHE 3136HL | 6 1/2" | 180 | M 180x3 | 131 | 210 | M4x0.7 | KML 36 + MBL 36 | C 3136K |
| OHE 3138H | 6 3/4" | 190 | M 190x3 | 141 | 240 | M6x1 | KM 38 + MB 38 | 22238K, 23138K, C 2238K |
| OHE 3140H | 7" | 200 | M 200x3 | 150 | 250 | M6x1 | KM 40 + MB 40 | 22240K, 23140K, C 3140K |
| OHE 3144H | 8" | 220 | Tr 220x4 | 161 | 280 | M4x0.7 | HM 3144 + MS 3144-MS 3148 | 22244K, 23144K, C 2244K |
| OHE 3144HTL | 8" | 220 | Tr 220x4 | 156 | 260 | M4x0.7 | HM 3044 + MS 3044 | C 3144K |
| OHE 3144XH | 8" | 220 | Tr 220x4 | 161 | 280 | M4x0.7 | HM 44T + MB 44 | 22244K, 23144K |
| OHE 3148H | 8 1/2" | 240 | Tr 240x4 | 172 | 300 | M6x1 | HM 3148 + MS 3144-MS 3148 | 22248K, 23148K |
| OHE 3148HTL | 8 1/2" | 240 | Tr 240x4 | 169 | 290 | M6x1 | HM 3048 + MS 3048-MS 3052 | C 3148K |
| OHE 3148XH | 8 1/2" | 240 | Tr 240x4 | 172 | 300 | M6x1 | HM 48T + MB 48 | 22248K, 23148K |
| OHE 3152H | 9 1/2" | 260 | Tr 260x4 | 190 | 330 | M4x0.7 | HM 3152 + MS 3152-MS 3156 | 22252K, 23152K |
| OHE 3152HTL | 9 1/2" | 260 | Tr 260x4 | 185 | 310 | M4x0.7 | HM 3052 + MS 3048-MS 3052 | C 3152K |
| OHE 3152XH | 9 1/2" | 260 | Tr 260x4 | 190 | 330 | M4x0.7 | HM 52T + MB 52 | 22252K, 23152K |
| OHE 3156H | 10" | 280 | Tr 280x4 | 195 | 350 | M6x1 | HM 3156 + MS 3152-MS 3156 | 22256K, 23156K |
| OHE 3156HTL | 10" | 280 | Tr 280x4 | 192 | 330 | M6x1 | HM 3056 + MS 3056 | C 3156K |
| OHE 3156XH | 10" | 280 | Tr 280x4 | 195 | 350 | M6x1 | HM 56T + MB 56 | 22256K, 23156K |
| OHE 3160H | 11" | 300 | Tr 300x4 | 208 | 380 | M6x1 | HM 3160 + MS 3160 | 22260K, 23160K, C 3160K |
| OHE 3160HTL | 11" | 300 | Tr 300x4 | 208 | 360 | M6x1 | HM 3060 + MS 3060 | 22260K, 23160K, C 3160K |
| OHE 3164H | 11 1/2" | 320 | Tr 320x5 | 226 | 400 | M6x1 | HM 3164 + MS 3164 | 22264K, 23164K, C 3164K |
| OHE 3164HTL | 11 1/2" | 320 | Tr 320x5 | 226 | 380 | M6x1 | HM 3064 + MS 3064-MS 3068 | 22264K, 23164K, C 3164K |
| OHE 3168H | 12" | 340 | Tr 340x5 | 254 | 440 | M6x1 | HM 3168 + MS 3168-MS 3172 | 23168K, C 3168K |
| OHE 3168HTL | 12" | 340 | Tr 340x5 | 244 | 400 | M6x1 | HM 3068 + MS 3064-MS 3068 | 23168K, C 3168K |
| OHE 3172H | 13" | 360 | Tr 360x5 | 259 | 460 | M6x1 | HM 3172 + MS 3168-MS 3172 | 23172K, C 3172K |
| OHE 3172HTL | 13" | 360 | Tr 360x5 | 246 | 420 | M6x1 | HM 3072 + MS 3072 | 23172K, C 3172K |
| OHE 3176H | 14" | 380 | Tr 380x5 | 264 | 490 | M6x1 | HM 3176 + MS 3176 | 23176K |
| OHE 3176HTL | 14" | 380 | Tr 380x5 | 252 | 450 | M6x1 | HM 3076 + MS 3076-MS 3080 | 23176K |
| OHE 3180H | 15" | 400 | Tr 400x5 | 272 | 520 | M4x0.7 | HM 3180 + MS 3180-MS 3184 | 23180K, C 3180K |
| OHE 3180HTL | 15" | 400 | Tr 400x5 | 262 | 470 | M4x0.7 | HM 3080 + MS 3076-MS 3080 | 23180K, C 3180K |
| OHE 3184H | 15 3/4" | 420 | Tr 420x5 | 304 | 540 | M6x1 | HM 3184 + MS 3180-MS 3184 | 23184K, C 3184K |
| OHE 3184HTL | 15 3/4" | 420 | Tr 420x5 | 286 | 490 | M6x1 | HM 3084 + MS 3084 | 23184K, C 3184K |
| OHE 3188H | 16" | 440 | Tr 440x5 | 307 | 560 | M8x1.25 | HM 3188 + MS 3188-MS 3192 | 23188K |
| OHE 3188HTL | 16" | 440 | Tr 440x5 | 297 | 520 | M8x1.25 | HM 3088 + MS 3088-MS 3092 | 23188K |
| OHE 3192H | 17" | 460 | Tr 460x5 | 326 | 580 | M8x1.25 | HM 3192 + MS 3188-MS 3192 | 23192K, C 3192K |
| OHE 3192HTL | 17" | 460 | Tr 460x5 | 311 | 540 | M8x1.25 | HM 3092 + MS 3088-MS 3092 | 23192K, C 3192K |
| OHE 3196H | 18" | 480 | Tr 480x5 | 335 | 620 | M6x1 | HM 3196 + MS 3196 | 23196K |
| OHE 3196HTL | 18" | 480 | Tr 480x5 | 320 | 560 | M6x1 | HM 3096 + MS 3096-30/500 | 23196K |
| OHE 31/500H | 18 1/2" | 500 | Tr 500x5 | 356 | 630 | M8x1.25 | HM 31/500 + MS 31/500 | 231/500K, C 31/500K |
| OHE 31/500HTL | 18 1/2" | 500 | Tr 500x5 | 344 | 580 | M8x1.25 | HM 30/500 + MS 3096-30/500 | 231/500K, C 31/500K |
