Product Name: OHS 31 Series Hydraulic Adapter Sleeves
Product Details

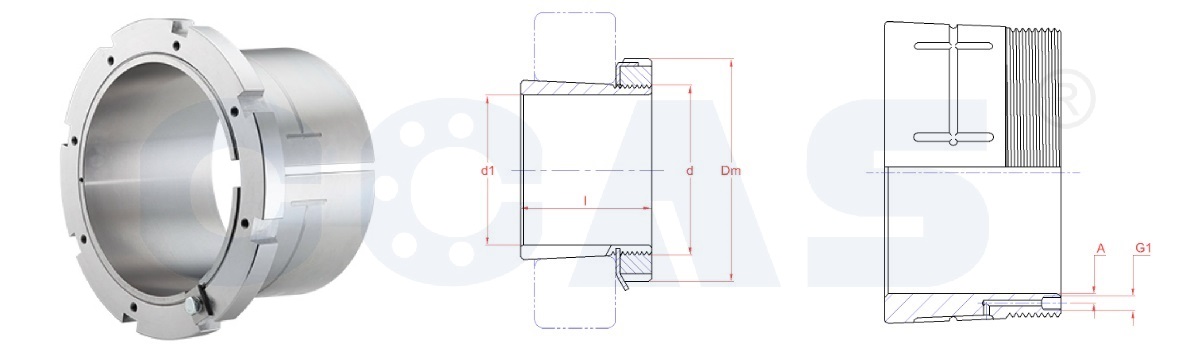

Drawing and Technical Parameters of OHS 31 Series Hydraulic Adapter Sleeves
| Adapter Sleeves No. | d1 | d | G | l | Dm | G1 | Lock Nuts + Lock Washer | Bearings |
| mm | mm | mm | mm | |||||
| OHS 3134H | 5 7/8" | 170 | M 170x3 | 122 | 220 | M6x1 | KM 34 + MB 34 | 20334K, 22234K, 23134K |
| OHS 3136H | 6 3/8" | 180 | M 180x3 | 131 | 230 | M6x1 | KM 36 + MB 36 | 22236K, 23136K |
| OHS 3138H | 6 5/8" | 190 | M 190x3 | 141 | 240 | M6x1 | KM 38 + MB 38 | 22238K, 23138K, C 2238K |
| OHS 3140H | 7 1/8" | 200 | M 200x3 | 150 | 250 | M6x1 | KM 40 + MB 40 | 22240K, 23140K, C 3140K |
